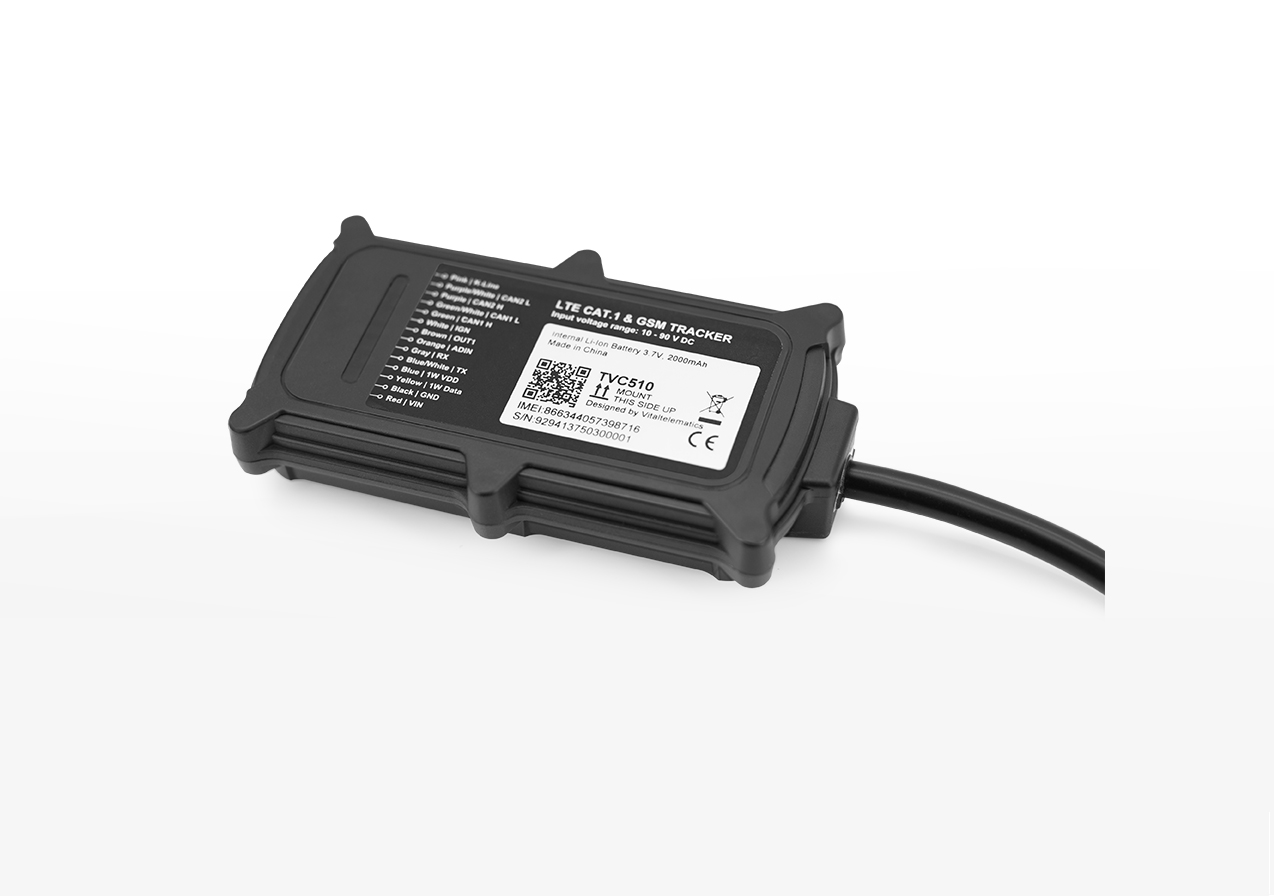

TVC510
LTE CAT1 Multiple Interface Vehicle Tracker
TVC510 is designed as flagship full-features vehicle tracker for Fleet Management, Trailer Tracking, Cold Chain Solutions.
Related products
- CAT1 with 2G fall back
- Wide range voltage: 10-90V
- L1&L5 dual band GNSS
- Multiple interfaces including CANBUS, RS232/485, DIN, DOUT, 1-wire, K-line
- Download Tachograph file and live data remotely
- Read CANBUS data from light vehicles and heavy vehicles
- DTC code supported
- IP67 waterproof which ensure its safe and reliable performance
- BLE 5.3 based wireless solutions, such as beacon, keyfob, relay, temperature & humidity sensor, door sensor, fuel sensor
-
Optional 2000mAh backup battery with deep sleep mode which can last 3 weeks with 1 report every day
- High compatibility protocol, one message for all products and events. Super easy for platform integration.
- Low data consumption which saves the monthly cost
- Web online configurator supports all OS and plug & play configuration
- Appropriate for fleet management, car rental, Eco driving, trailer tracking, cold chain solution
|
Data support |
SMS (TEXT, PDU), Network protocols (TCP, UDP, TLS, MQTT*) |
|
Scheduled Report |
Scheduled timing report, distance report, coner report |
|
Geo-fences |
Support |
| Alarms | Speeding, Harsh acceloration, Harsh braking，Harsh conering, Crash detection, Idling,Tow alarm |
| Driver Authorization |
1-wire RFID reader 1-wire ibutton BLE key and BLE relay |
| Temperature Monitoring |
BLE/1-wire temperature sensor and humidity sensor |
| CANBUS |
Real time CANbus data |
| Tachograph |
Real-time tachograph data and DDD file downloading |
| DTC |
Support |
| Protocol | High compatibility protocol, only one message for all products and events. Super easy for platform integration |
| Configuration Tool |
Web online configurator supports all OS and plug & play configuration |
| FOTA | Yes |
| BLE | BLE configuration, BLE debug, BLE firmware upgrading, BLE accessories |
|
General Specifications |
|
|
Dimensions |
64.0*112.0*23.5mm |
|
Weight |
73 |
| Voltage | 10 - 90V DC |
|
Operating Temperature |
-40 °C to +85 °C (without battery) |
|
Storage Temperature |
-40 °C to +85 °C (without battery) |
|
Ingress Protection Rating |
IP67 |
|
Back-up Battery |
170mAh/3.7V industrial-grade Li-Ion battery |
|
2000mAh Li-Ion battery 3.7 V （optional） |
|
|
GNSS Specifications |
|
| GNSS |
L1: BEIDOU,GPS, GLONASS, GALILEO,QZSS, SBAS |
|
L5: GPS, QZSS |
|
|
Tracking Sensitivity |
-165 dBM |
|
Position Accuracy(CEP) |
< 1m |
|
Velocity Accuracy |
0.1m/s |
| TTFF |
Cold Start: 24s |
|
Hot Start: 1s |
|
|
Reacquisition: 2s |
|
|
Network Specifications |
|
|
Frequency Bands (EU) |
GSM: B2/B3/B5/B8 LTE FDD: B1/B3/B5/B7/B8/B20/B28 |
|
Frequency Bands (LA) |
GSM: B2/B3/B5/B8 LTE FDD: B2/B3/B4/B5/B7/B8/B28/ B66 |
|
Data Transfer (Max)
|
LTE FDD (Cat.1): 10 Mbps (DL) / 5 Mbps (UL) |
|
GSM (GPRS): 85.6 Kbps (DL) / 85.6 Kbps (UL) |
|
|
GPRS: 85.6Kbps(DL),85.6Kbps(UL) (Option) |
|
|
Interface |
|
|
Digital Inputs |
1 positive inputs designed for ignition detection 1 nagetive inputs designed for SOS, door sensor etc |
|
Analog Inputs |
1 |
|
Digital Outputs |
1 |
|
CANBUS |
2 CANBUS |
|
K-Line |
1 |
|
RS232 |
1 |
|
RS485 |
Optional 1 |
|
1-wire Interface |
RFID reader, ibutton/dallas key, temperature sensor and humidity sensor |
|
BLE |
BLE 5.3 |
|
Type-C |
Designed for firmware upgrade, configuration and debug |
BLE Driver Key
BLE Relay
BLE Beacon
BLE Door sensor
BLE Temperature & Humidity sensor
1-wire RFID reader
1-wire temperature sensor and humidity sensor
1-wire ibutton/Dallas key
ACL200 Contactless CANBUS Reader
